Desde su lanzamiento en abril, la plataforma Ryzen de AMD se ha establecido rápidamente como una opción viable, ofreciendo un rendimiento ejemplar para la computación y los juegos diarios. ASUS estaba listo para el lanzamiento, liberando una serie de placas madre para PCs valiosas para modelos orientados a plataformas de gama alta. Sin embargo, la presión de la demanda de los sistemas basados en Ryzen demuestra la necesidad de más opciones en medio de la pila de productos ASUS.
Así que que han anunciado que reforzaran su catalogo con dos nuevas placas madre AM4 dirigidas directamente a los jugadores que deseen utilizar el rendimiento de Ryzen en su próxima construcción de PC.

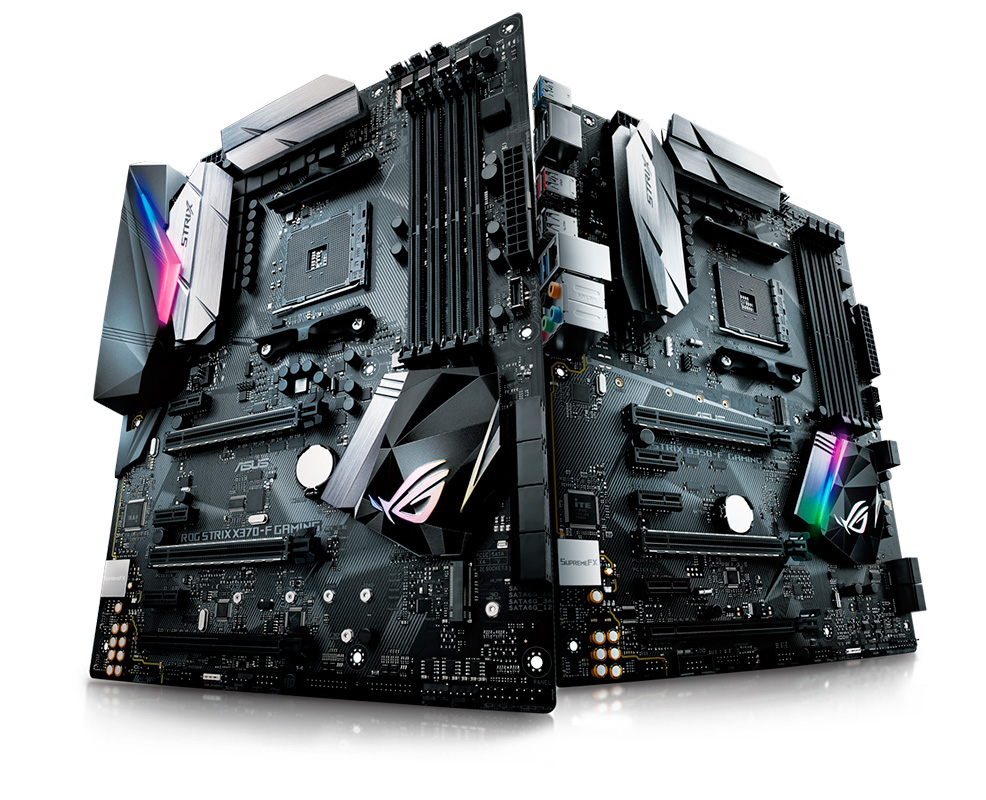

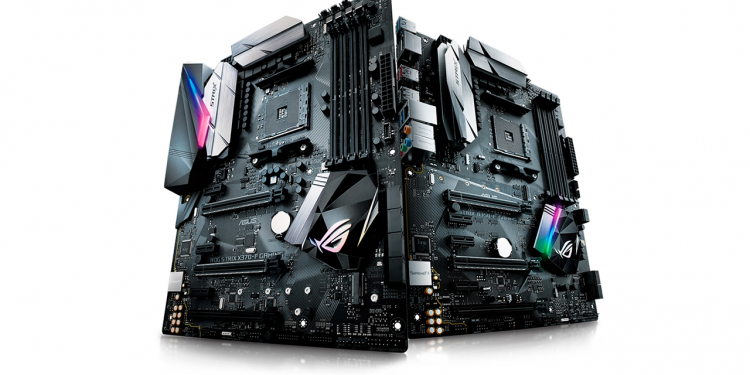

Basados en los últimos chipsets AMD X370 y B350, la Strix X370-F y Strix B350-F ATX incluyen todas las mejoras Core ROG que hacen que la configuración del sistema sea fácil, al tiempo que ofrecen un rendimiento que se destaca de la multitud.

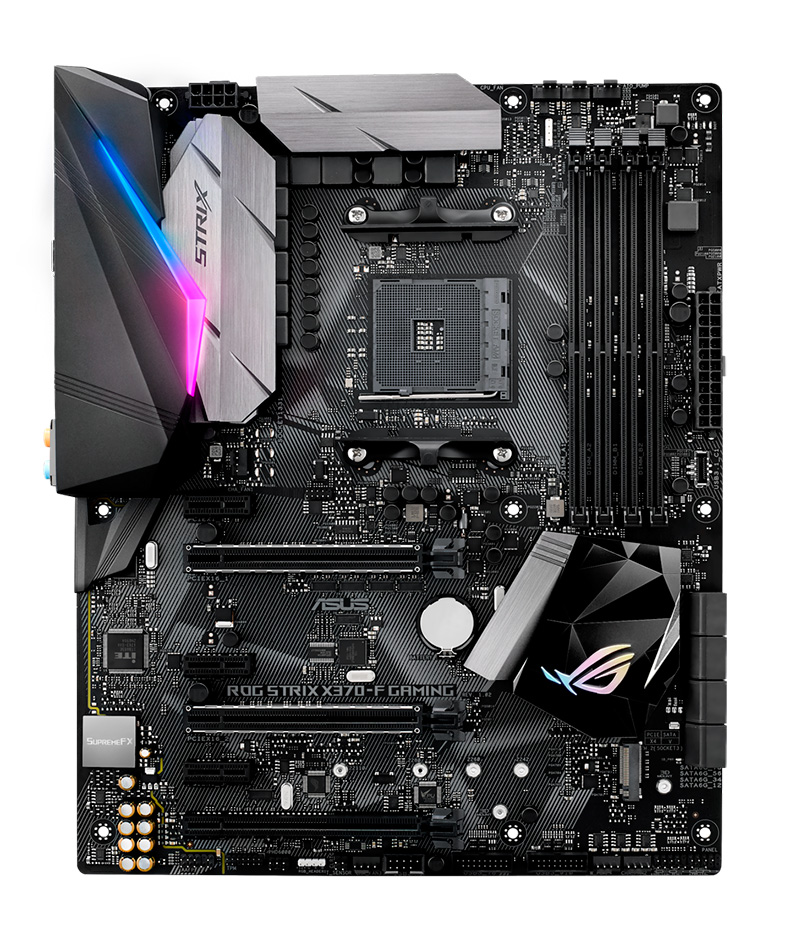

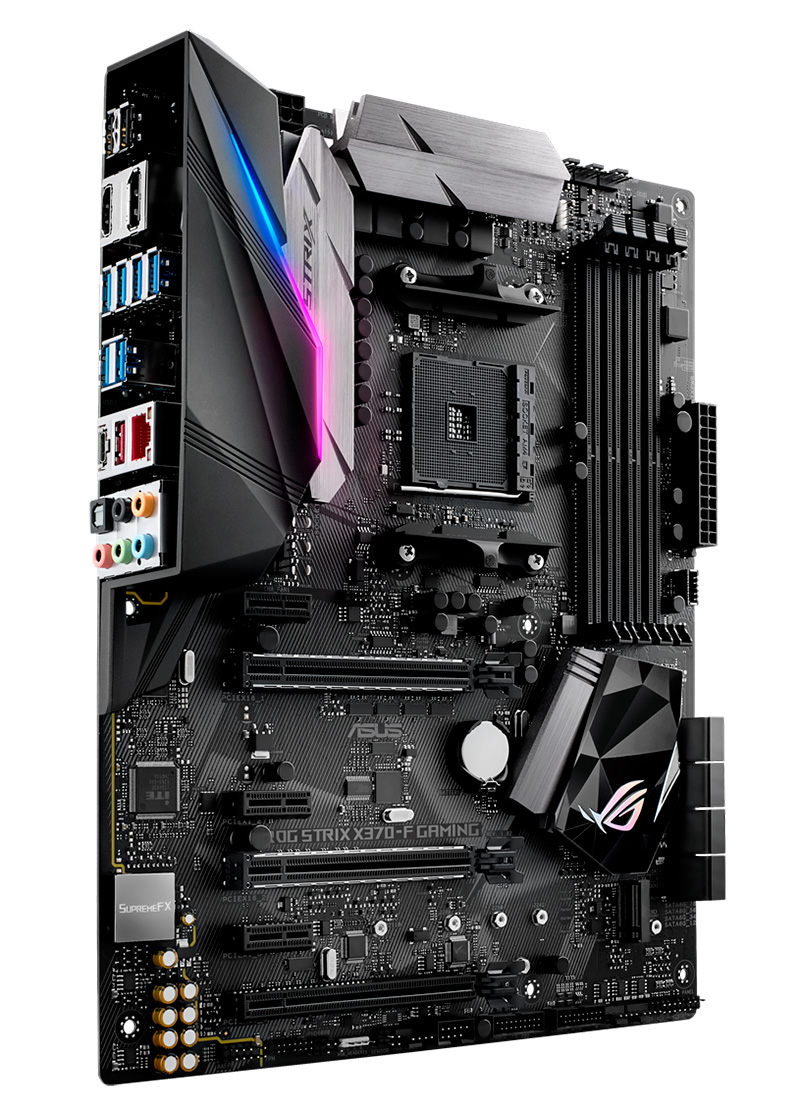

| ESPECIFICACIONES ASUS ROG Strix X370-F Gaming |
| Processor/CPU socket | AM4 socket for AMD® Ryzen™ / 7th Gen A-series / Athlon™ processors |
| Chipset | AMD® X370 |
| Memory | - AMD Ryzen™ processor
- 4 x DIMM, max. 64GB, DDR4 3200+(OC)/2666/2400/2133 MHz, Ecc and non-ECC, unbuffered memory*
- AMD 7th Gen A-series/Athlon™ processors
- 4 x DIMM, max. 64GB, DDR4 2400/2133 MHz, non-ECC, unbuffered memory*
- Dual-channel memory architecture
|
| Expansion slots | - AMD® Ryzen™ processor
- 2 x PCIe® 3.0 x16 (supports x16, x8/x8)
- AMD® 7th Gen A-series/Athlon™ processor
- 1 x PCIe® 3.0 x16 (supports x8)
- AMD® X370 chipset
- 1 x PCIe® 2.0 x16 (max. at x4 mode)*
- 3 x PCIe® 2.0 x1
*PCIex16_3 slot shares bandwidth with PCIex1_2 and PCIex1_3 |
| Graphics (VGA) | - Integrated AMD® Radeon™ R Series graphics in the 7th Gen A-series APU
- Multi-VGA output support: HDMI and DisplayPort
- Supports HDMI 1.4b with maximum resolution of 4096 x 2160 at 24Hz
- Supports DisplayPort 1.2 with maximum resolution of 4096 x 2160 at 60Hz
|
| Storage | - AMD® Ryzen™ processor
- 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 (PCIe® 3.0 x4 and SATA modes) storage devices support
- AMD® 7th Gen A-series/Athlon™ processor
- 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 (SATA mode) storage devices support
- AMD® X370 chipset with RAID 0, 1, 10 support
- 8 x SATA 6Gbps ports
|
| Networking/LAN | - Intel® I211-AT with ASUS LANGuard
|
| USB | - AMD® Ryzen™/7th Gen A-series/Athlon™ processor
- 4 x USB 3.1 Gen 1 ports (4 ports at back panel)
- AMD® X370 chipset
- 1 x USB 3.1 Gen 2 front panel connector
- 6 x USB 3.1 Gen 1 ports (2 ports at back panel[blue], 4 ports at mid-board)
- 4 x USB 2.0 ports (2 ports at back panel, 2 ports at mid-board)
- ASMedia® USB 3.1 Gen 2 controller
- 2 x USB 3.1 Gen 2 ports (2 ports at back panel, Type-A and Type-C)
|
| Audio | - SupremeFX S1220A 8-channel high-definition audio codec
- – 120dB SNR output and 113dB SNR recording input
- – SupremeFX shielding technology
- – Dual headphone amplifiers
- – Jack-detection, multistreaming and front panel jack-retasking
|
| Dimensions / form factor | - ATX, 12 x 9.6” (30.5 x 24.4 cm)
|

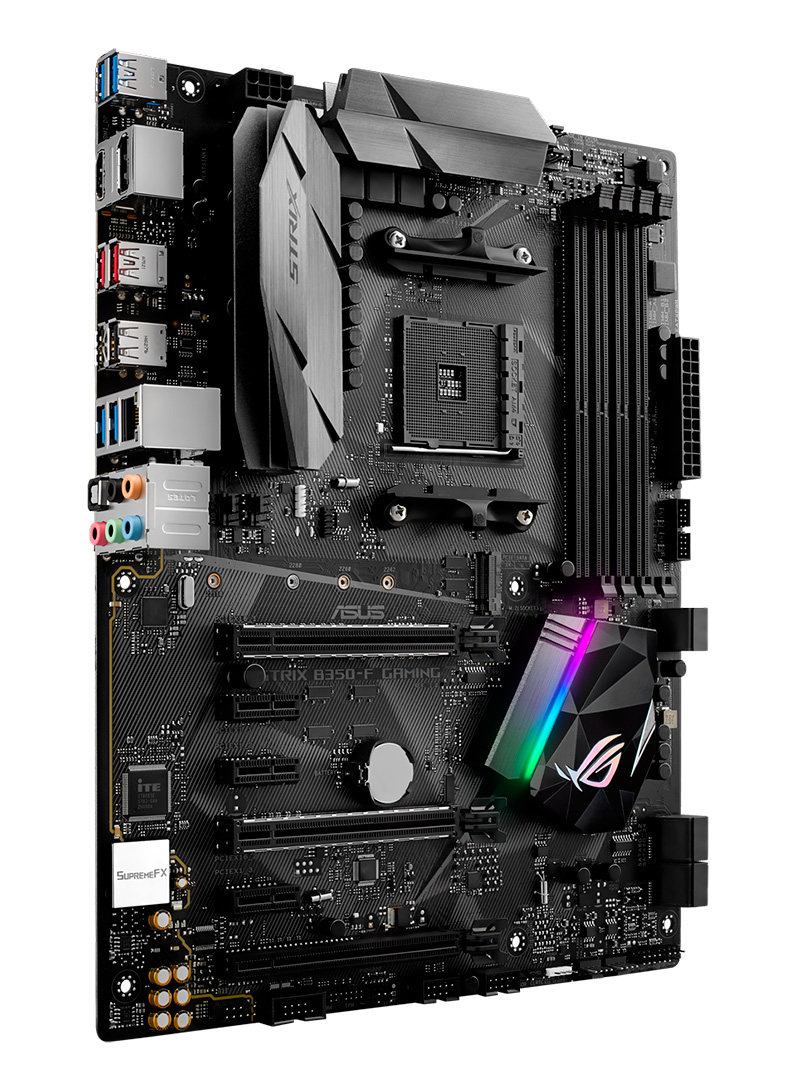

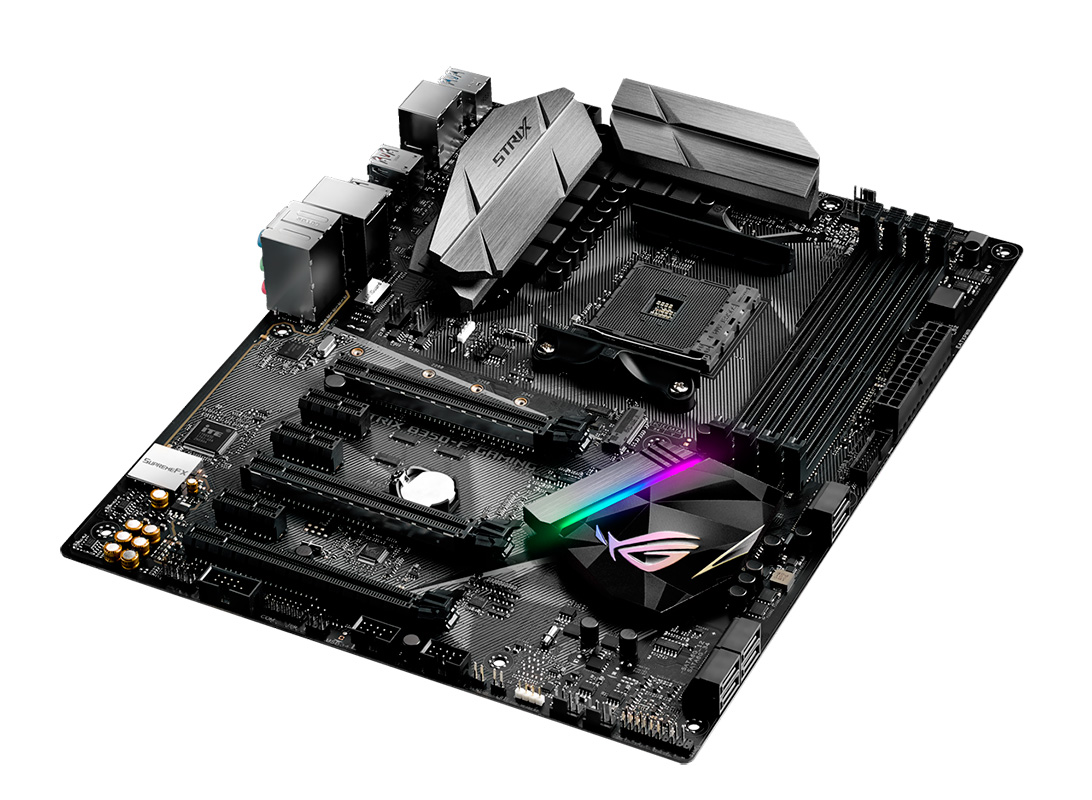

| ESPECIFICACIONES ASUS ROG Strix B350-F Gaming |
| Processor/CPU socket | - AM4 socket for AMD® Ryzen™ / 7th Gen A-series / Athlon™ processors
|
| Chipset | |
| Memory | - 4 x DIMM, max. 64GB, DDR4 3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz ECC and Non-ECC, unbuffered memory*
- AMD 7th Gen A-series/Athlon™ processor
- 4 x DIMM, max. 64GB, DDR4 2400/2133 MHz Non-ECC, unbuffered memory
- Dual-channel memory architecture:
* Due to AMD Ryzen™ processor limitations, only one DIMM per channel is supported for memory faster than DDR4-2666 * Hyper DIMM support is subject to the physical characteristics of individual CPUs * See ASUS Qualified Vendor List at https://www.asus.com/Motherboards/ROG-STRIX-B350-F-GAMING/HelpDesk_QVL/ for details |
| Expansion slots | - AMD® Ryzen™ processor
- 2 x PCIe 3.0/2.0 x16 (x16 or x8/x4)
- AMD® 7th Gen A-series/Athlon™ processor
- 1 x PCIe ®3.0/2.0 x16 (x8 mode)
- AMD B350 chipset
- 1 x PCIe® 2.0 x16 (max. at x4 mode)
- 3 x PCIe® 2.0 x1
|
| Graphics (VGA) | - Integrated AMD® Radeon™ R Series graphics in the 7th Gen A-series APU
- Multi-VGA output support: HDMI and DisplayPort ports
- Supports HDMI 1.4b with max. resolution of 4096 x 2160 at 24Hz
- Supports DisplayPort 1.2 with max. resolution of 4096 x 2160 at 60Hz
|
| Storage | - AMD Ryzen™ processor
- 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices supported (SATA & PCIe® 3.0 x 4 mode)*
- AMD® Ryzen™/7th Gen A-series/Athlon™ processor
- 2 x SATA 6Gbps ports, gray
- AMD 7th Gen A-series/Athlon™ processor
- 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices supported (SATA & PCIe® 3.0 x 2 mode)*
- AMD® B350 chipset
- 4 x SATA 6Gbps ports, gray (supports Raid 0, 1, 10)
* When a SATA mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports. |
| Networking/LAN | - Intel® I211-AT with ASUS LANGuard
|
| USB | - AMD Ryzen™/7th Gen A-series/Athlon™ processor
- 4 x USB 3.1 Gen 1 ports (4 at back panel, blue)
- AMD® B350 chipset
- 2 x USB 3.1 Gen 2 ports (2 at back panel, red)
- AMD® B350 chipset
- 2 x USB 3.1 Gen 1 ports (2 at mid-board)
- AMD® B350 chipset
- 6 x USB 2.0 ports (2 at back panel, black, 4 at mid-board)
|
| Audio | - SupremeFX S1220A 8-channel HD audio codec
- – 120dB SNR output and 113dB SNR recording input
- – SupremeFX shielding technology
- – Dual headphone amplifiers
- – Jack-detection, multistreaming and front panel jack-retasking
|
| Dimensions / form factor | - ATX, 12 x 9.6” (30.5 x 24.4cm)
|
