Desde su lanzamiento en abril, la plataforma Ryzen de AMD se ha establecido rápidamente como una opción viable , ofreciendo un rendimiento ejemplar para la computación y los juegos diarios. ASUS estaba listo para el lanzamiento, liberando una serie de placas madre para PCs valiosas para modelos orientados a plataformas de gama alta . Sin embargo, la presión de la demanda de los sistemas basados en Ryzen demuestra la necesidad de más opciones en medio de la pila de productos ASUS.
Así que que han anunciado que reforzaran su catalogo con dos nuevas placas madre AM4 dirigidas directamente a los jugadores que deseen utilizar el rendimiento de Ryzen en su próxima construcción de PC.
Basados en los últimos chipsets AMD X370 y B350 , la Strix X370-F y Strix B350-F ATX incluyen todas las mejoras Core ROG que hacen que la configuración del sistema sea fácil, al tiempo que ofrecen un rendimiento que se destaca de la multitud.
ESPECIFICACIONES ASUS ROG Strix X370-F Gaming
Processor/CPU socket AM4 socket for AMD® Ryzen™ / 7th Gen A-series / Athlon™ processors
Chipset AMD® X370
Memory
AMD Ryzen™ processor
4 x DIMM, max. 64GB, DDR4 3200+(OC)/2666/2400/2133 MHz, Ecc and non-ECC, unbuffered memory*
AMD 7th Gen A-series/Athlon™ processors
4 x DIMM, max. 64GB, DDR4 2400/2133 MHz, non-ECC, unbuffered memory*
Dual-channel memory architecture
Expansion slots
AMD® Ryzen™ processor
2 x PCIe® 3.0 x16 (supports x16, x8/x8)
AMD® 7th Gen A-series/Athlon™ processor
1 x PCIe® 3.0 x16 (supports x8)
AMD® X370 chipset
1 x PCIe® 2.0 x16 (max. at x4 mode)*
3 x PCIe® 2.0 x1
*PCIex16_3 slot shares bandwidth with PCIex1_2 and PCIex1_3
Graphics (VGA)
Integrated AMD® Radeon™ R Series graphics in the 7th Gen A-series APU
Multi-VGA output support: HDMI and DisplayPort
Supports HDMI 1.4b with maximum resolution of 4096 x 2160 at 24Hz
Supports DisplayPort 1.2 with maximum resolution of 4096 x 2160 at 60Hz
Storage
AMD® Ryzen™ processor
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 (PCIe® 3.0 x4 and SATA modes) storage devices support
AMD® 7th Gen A-series/Athlon™ processor
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 (SATA mode) storage devices support
AMD® X370 chipset with RAID 0, 1, 10 support
8 x SATA 6Gbps ports
Networking/LAN
Intel® I211-AT with ASUS LANGuard
USB
AMD® Ryzen™/7th Gen A-series/Athlon™ processor
4 x USB 3.1 Gen 1 ports (4 ports at back panel)
AMD® X370 chipset
1 x USB 3.1 Gen 2 front panel connector
6 x USB 3.1 Gen 1 ports (2 ports at back panel[blue], 4 ports at mid-board)
4 x USB 2.0 ports (2 ports at back panel, 2 ports at mid-board)
ASMedia® USB 3.1 Gen 2 controller
2 x USB 3.1 Gen 2 ports (2 ports at back panel, Type-A and Type-C)
Audio
SupremeFX S1220A 8-channel high-definition audio codec
– 120dB SNR output and 113dB SNR recording input
– SupremeFX shielding technology
– Dual headphone amplifiers
– Jack-detection, multistreaming and front panel jack-retasking
Dimensions / form factor
ATX, 12 x 9.6” (30.5 x 24.4 cm)

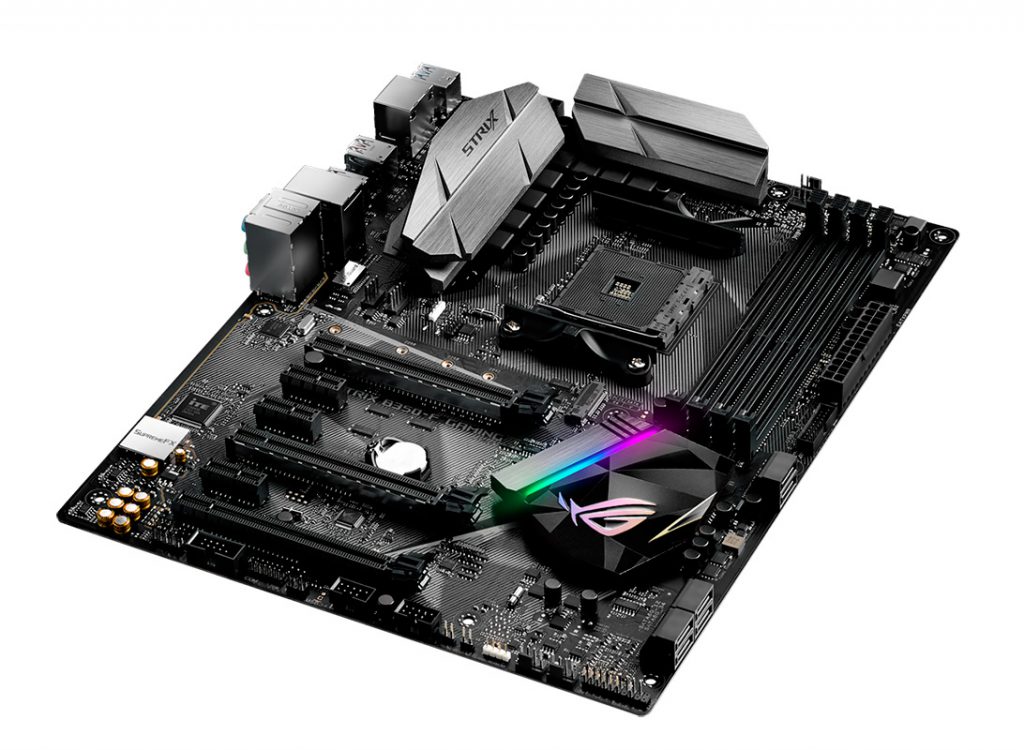

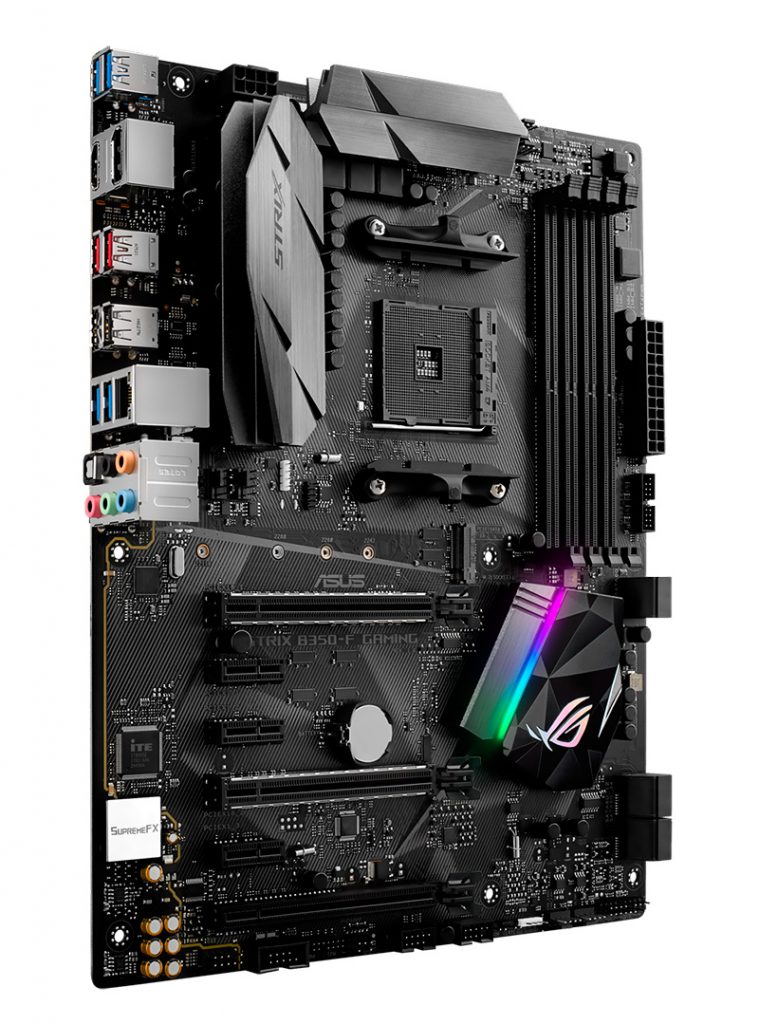

ESPECIFICACIONES ASUS ROG Strix B350-F Gaming
Processor/CPU socket
AM4 socket for AMD® Ryzen™ / 7th Gen A-series / Athlon™ processors
Chipset
Memory
4 x DIMM, max. 64GB, DDR4 3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz ECC and Non-ECC, unbuffered memory*
AMD 7th Gen A-series/Athlon™ processor
4 x DIMM, max. 64GB, DDR4 2400/2133 MHz Non-ECC, unbuffered memory
Dual-channel memory architecture:
* Due to AMD Ryzen™ processor limitations, only one DIMM per channel is supported for memory faster than DDR4-2666
* Hyper DIMM support is subject to the physical characteristics of individual CPUs
* See ASUS Qualified Vendor List at https://www.asus.com/Motherboards/ROG-STRIX-B350-F-GAMING/HelpDesk_QVL/ for details
Expansion slots
AMD® Ryzen™ processor
2 x PCIe 3.0/2.0 x16 (x16 or x8/x4)
AMD® 7th Gen A-series/Athlon™ processor
1 x PCIe ®3.0/2.0 x16 (x8 mode)
AMD B350 chipset
1 x PCIe® 2.0 x16 (max. at x4 mode)
3 x PCIe® 2.0 x1
Graphics (VGA)
Integrated AMD® Radeon™ R Series graphics in the 7th Gen A-series APU
Multi-VGA output support: HDMI and DisplayPort ports
Supports HDMI 1.4b with max. resolution of 4096 x 2160 at 24Hz
Supports DisplayPort 1.2 with max. resolution of 4096 x 2160 at 60Hz
Storage
AMD Ryzen™ processor
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices supported (SATA & PCIe® 3.0 x 4 mode)*
AMD® Ryzen™/7th Gen A-series/Athlon™ processor
2 x SATA 6Gbps ports, gray
AMD 7th Gen A-series/Athlon™ processor
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices supported (SATA & PCIe® 3.0 x 2 mode)*
AMD® B350 chipset
4 x SATA 6Gbps ports, gray (supports Raid 0, 1, 10)
* When a SATA mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports.
Networking/LAN
Intel® I211-AT with ASUS LANGuard
USB
AMD Ryzen™/7th Gen A-series/Athlon™ processor
4 x USB 3.1 Gen 1 ports (4 at back panel, blue)
AMD® B350 chipset
2 x USB 3.1 Gen 2 ports (2 at back panel, red)
AMD® B350 chipset
2 x USB 3.1 Gen 1 ports (2 at mid-board)
AMD® B350 chipset
6 x USB 2.0 ports (2 at back panel, black, 4 at mid-board)
Audio
SupremeFX S1220A 8-channel HD audio codec
– 120dB SNR output and 113dB SNR recording input
– SupremeFX shielding technology
– Dual headphone amplifiers
– Jack-detection, multistreaming and front panel jack-retasking
Dimensions / form factor
ATX, 12 x 9.6” (30.5 x 24.4cm)
